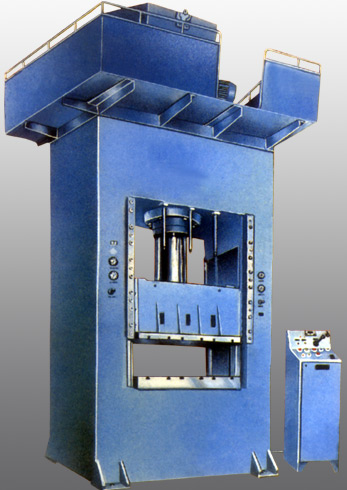

| Products > Hydraulic Deep Drawing Press With Die Cushion |
 |
 |
 |
| |
| Main Ram Capacity In Ton |
100 |
200 |
300 |
400 |
500 |
| Die Cushion Capacity In Ton |
40 |
100 |
120 |
150 |
200 |
| Main Ram Stroke In mm |
400 |
600 |
700 |
800 |
900 |
| Die Cushion Stroke In mm |
200 |
300 |
350 |
400 |
400 |
| Day Light In mm |
700 |
1050 |
1150 |
1300 |
1450 |
| Main Table Area In mm (FBXLR) |
700x800 |
800x1000 |
1000x1200 |
1000x1200 |
1000x1200 |
| Ram Table Area In mm (FBXLR) |
700x800 |
800x1000 |
1000x1200 |
1000x1200 |
1000x1200 |
| Working Height In mm |
750 |
750 |
750 |
750 |
750 |
| Power |
20 |
40 |
50 |
50 |
75 |
|
 |
OVERALL DIMENSIONS ARE IN mm, APPROXIMATE & MAY BE CHANGED WITHOUT PRIOR NOTICE. |
| |
